OVJ Belt Disc Sander 300W

The JBDS-4113 belt and disc sander is a compact bench-top machine designed for precise sanding, shaping, and finishing of wood and similar materials. Powered by a 300W single-phase motor operating on 220V 50Hz supply, it delivers stable performance for workshop, classroom, and light production use.

This machine combines a vertical sanding belt with a side-mounted sanding disc, allowing users to switch easily between edge sanding, surface smoothing, and contour work. The sanding belt measures 25 × 762 mm and runs at a belt speed of 13.5 m/s, making it suitable for controlled material removal. The 125 mm sanding disc rotates at 2950 RPM and is paired with an adjustable work table to support accurate angle sanding.

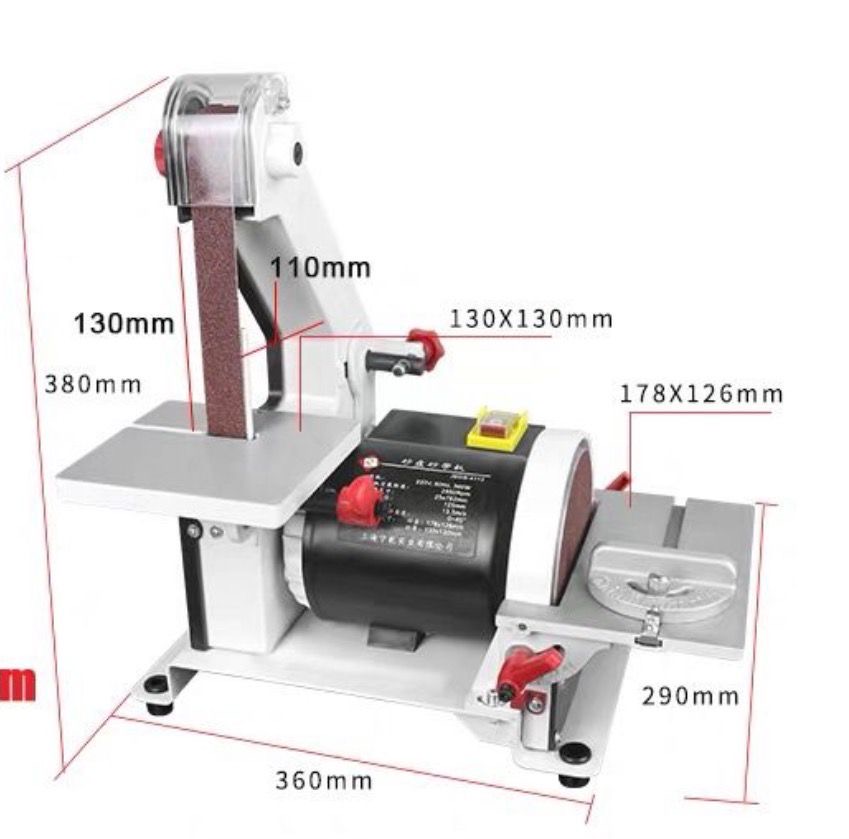

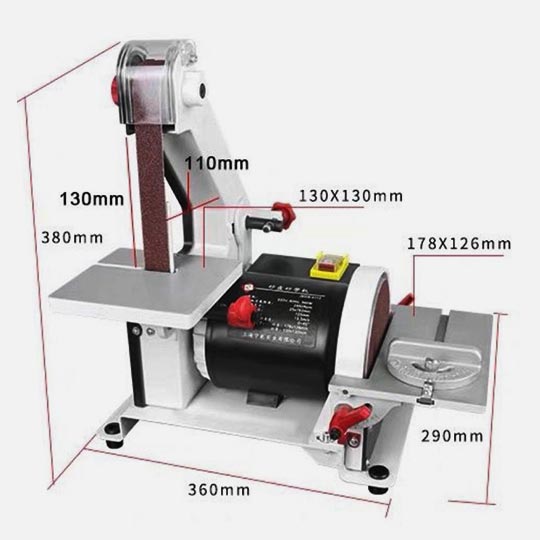

Both the belt and disc are supported by solid work tables, with the disc table offering a tilt range from 0 to 45 degrees for angled sanding tasks. The belt work table provides a stable surface for vertical sanding applications. The compact overall footprint of 290 × 360 × 380 mm allows the machine to fit comfortably on standard workbenches without occupying excessive space.

The JBDS-4113 includes a dust extraction port to help maintain a cleaner working environment when connected to a suitable dust collection system. With a net weight of approximately 8.2 kg, the unit offers a good balance between stability and portability. This belt and disc sander is well suited for woodworking, craft projects, makerspaces, and educational settings where reliable and consistent sanding performance is required.
